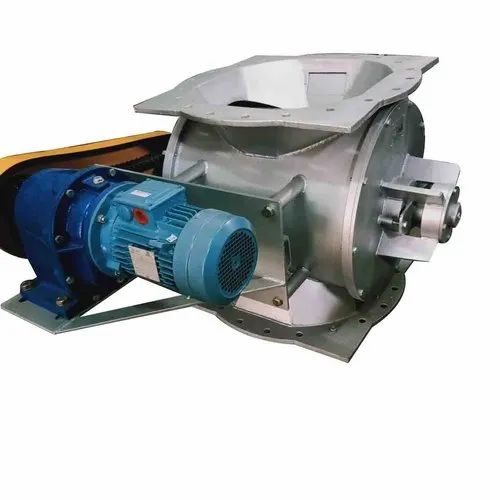

rotary valve diagram

rotary valve diagram Specification

Voltage
230 V / 415 V for electric model

Size
Customizable as per application

Finish
Smooth, corrosion-resistant

Connection
Flanged / Spigot / Customized

Sealing
Neoprene / Nitrile / PTFE

Material
Cast Iron, Stainless Steel, Mild Steel, Aluminum

Power
Manual / Pneumatic / Electric

Media
Air, Powder, Granules, Solid Material

Temperature of Media
-20C to 250C

Port Size
50 mm to 400 mm

Flange
Square / Round (as per design requirements)

Application
Bulk material handling, Discharge & metering from hoppers, pneumatic conveying systems

Capacity
0.5 m3/hr to 40 m3/hr

Shaft Material
EN8 / SS304

Maintenance Access
Quick release side plates / service port

Bearing Type
Sealed Ball Bearing / Spherical Roller

Drive Mechanism
Direct / Chain / Gear motor drive

Pressure Rating
Up to 1 bar (g)

Body Thickness
6 mm - 20 mm (as per capacity)

Surface Treatment
Shot blasted, anti-corrosive coating

Mounting Orientation
Horizontal / Vertical

Rotor Type
Closed Rotor / Open Rotor / Adjustable Blades

Number of Vanes
6, 8 or customized

rotary valve diagram Trade Information

Minimum Order Quantity
1 Number

Supply Ability
500 Per Month

Delivery Time
7 Days

About rotary valve diagram

Discover the sought-after rotary valve diagram at a reduced price-featuring both Closed and Open Rotor types with adjustable blades for tailored operations. Available in 6, 8, or custom vanes, this heroic component suits direct, chain, or gear motor drives. With a body thickness up to 20 mm, sealed bearings, and media handling for air, powder, granules, or solids at temperatures of -20C to 250C, it's designed for wondrous versatility. Add to Cart for a robust, anti-corrosive, and customizable rotary valve for bulk handling!

Superior Build and Versatile Applications

This rotary valve is crafted using premium Cast Iron, Stainless Steel, Mild Steel, or Aluminum, ensuring a smooth, corrosion-resistant finish. It's widely used for bulk material handling, precise discharge, and accurate metering from hoppers as well as pneumatic conveying systems. Renowned manufacturers and suppliers in India prefer this diagram for its durability. Users across industries benefit from its customizable size and robust construction, making it a standout solution for demanding operations.

Sample Access, Fast Arrival, and Secure Packaging

Experience confidence before you commit: samples of the rotary valve diagram are available. Upon order confirmation, expect prompt arrival-dispatched within a short delivery window with express shipping options across India. Each unit is expertly packed with tamper-proof, export-grade materials to ensure pristine condition upon delivery. Our dedicated logistics team ensures timely and hassle-free shipping, so your product reaches you securely and swiftly.

FAQ's of rotary valve diagram:

Q: How can I select the right rotary valve configuration for my specific application?

A: Selection depends on your media type, operating pressure, temperature, and required throughput. Our team can help tailor rotor type, number of vanes, and drive mechanism to meet your process requirements.

Q: What industries commonly use this rotary valve diagram?

A: Industries handling bulk materials-such as chemical, food, cement, and pharmaceuticals-benefit from its application in metering, hopper discharge, and pneumatic conveying systems.

Q: When can I expect the product to be dispatched after placing an order?

A: Generally, your rotary valve diagram is dispatched within a short timeline post confirmation, with express shipping options ensuring rapid, tracked delivery to your location.

Q: Where are these rotary valves manufactured and supplied from?

A: All rotary valves are manufactured and supplied directly from reputable facilities located in India, maintaining strict quality standards for each unit.

Q: What benefits does the quick release maintenance access offer?

A: Quick release side plates or service ports allow for fast, easy maintenance and cleaning, significantly reducing downtime and improving safety during service intervals.
